1500L Round Trough

Specifications: Model R15

Diameter Outside: 2250mm  ( 7’4″)
Height: 550mm (1’9″)
Weight: 1400kg
Volume: 1500 ltr (330 gal)
Inlet Size: 50mm (2″)
Outlet Size 100mm (4″)

Key Features

Wild River Concrete manufacture the highly regarded round 1500L trough. They are designed with a plumbing recess to keep the water inlet pipe away from stock. The trough has a rounded top edge and a smooth double vibrated finish. There is a water sump at the outlet for ease of cleaning.

The round trough can be installed with an optional concrete float protector which stands in the base of the trough and has a cut-out that sits over the inlet recess ledge. The weight is approx. 250kg and saves the float valve from damage if stock get into the trough.

Image Gallery

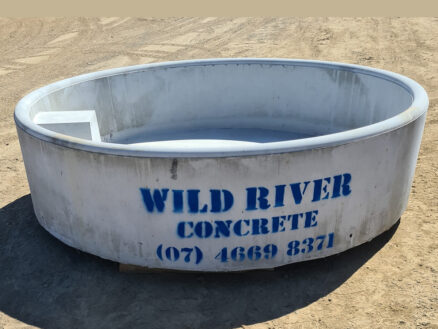

1500L-round-trough-1000

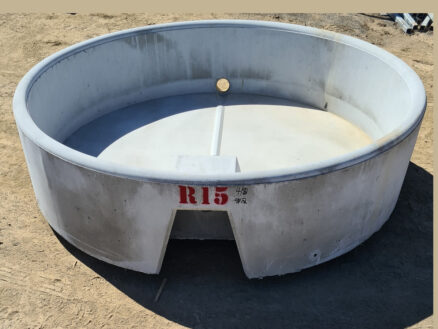

1500L-round-trough-1200
