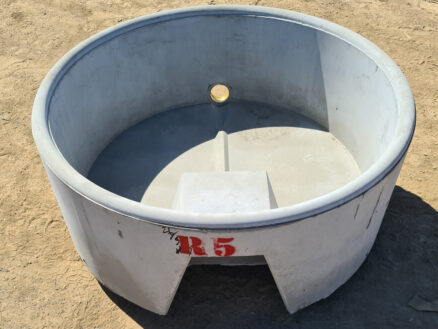

500L Round Trough

Specifications: Model R5

Diameter Outside: 1390mm  ( 4’6″)
Height: 550mm (1’9″)
Weight: 6
Volume: 500 ltr (110 gal)
Inlet Size: 50mm (2″)
Outlet Size 100mm (4″)

Contact Us for Pricing

Key Features

Wild River Concrete manufacture the highly regarded round 500L trough. They are designed with a plumbing recess to keep the water inlet pipe away from stock. The trough has a rounded top edge and a smooth double vibrated finish. There is a water sump at the outlet for ease of cleaning.

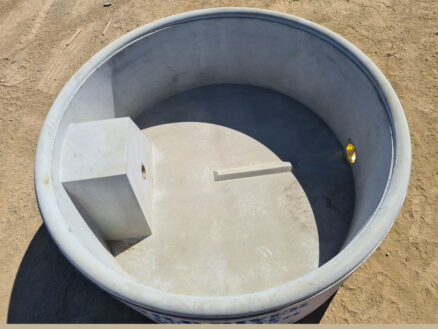

The round trough can be installed with an optional concrete float protector which stands in the base of the trough and has a cut-out that sits over the inlet recess ledge. The weight is approx. 250kg and saves the float valve from damage if stock get into the trough.
