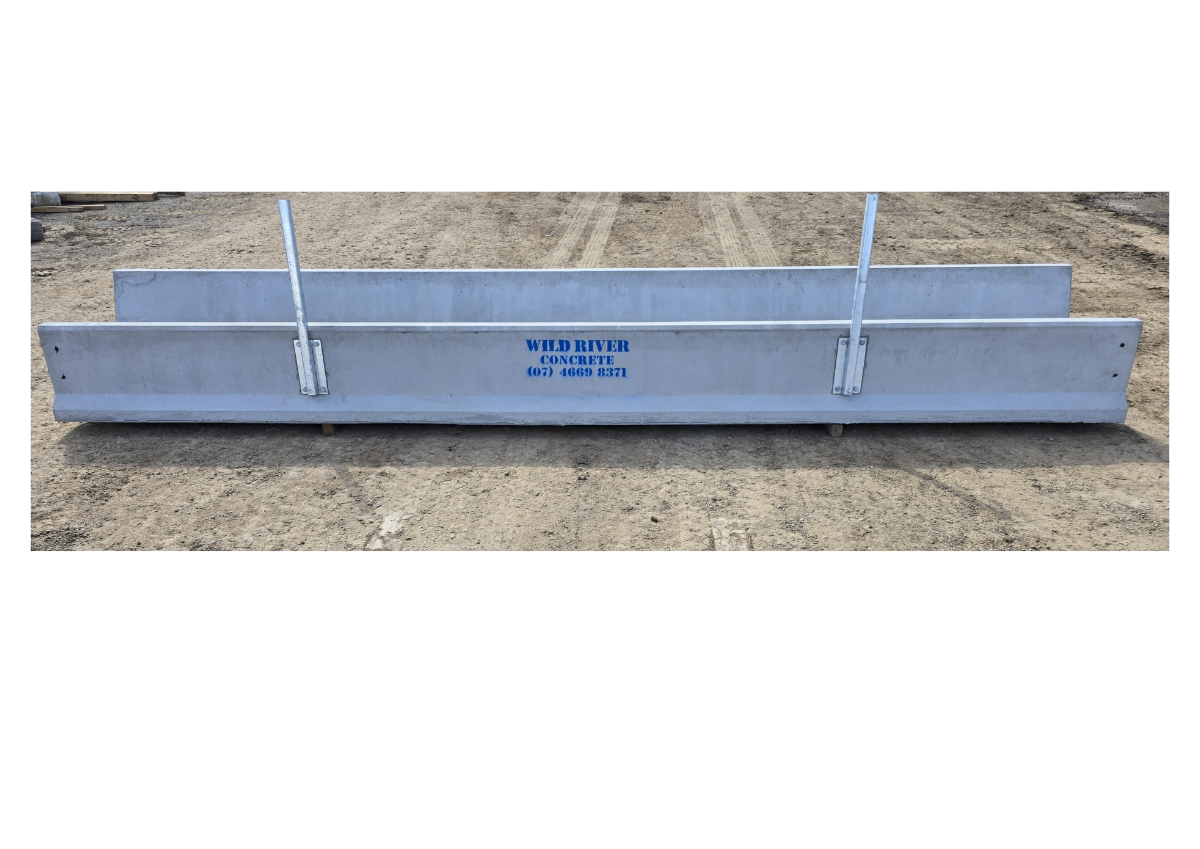

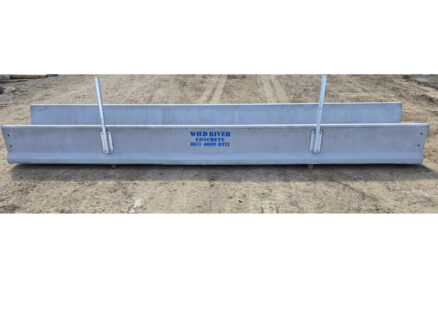

Angled Feed Bunk ~ 6Mtr

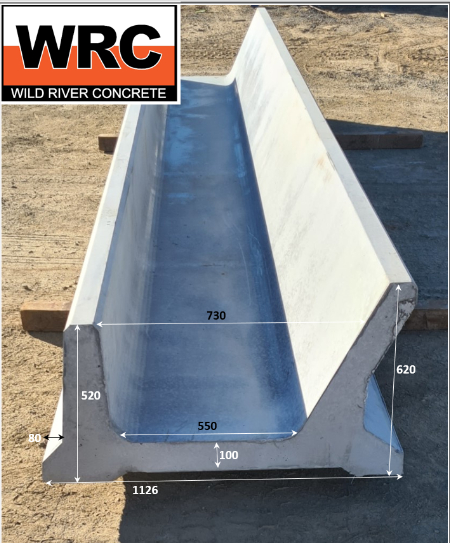

Specifications: Model AFB

Length: 6000mm  (20′)
Total Base Width: 1126mm (3’7″)
Height at Cattle Side: 520mms (1’7″)
Height at Feed Wagon: 620mms (2’)
Internal Feed Basin Width: 550mms (21.6″)
Base Thickness: 100mm (4″)
Cattle Wall Width: 140mms (5.5″)
Feed Wagon Side: 110mms (4.3″)
Weight: 3,380kg

Key Features

The latest addition to our feed bunk range is the 6mtr Angled Feed Bunk.
This bunk has been designed after consultation with numerous graziers requiring extra volume for their feed. It has a cleaning heel on the apron side of the bunk designed for the skid steer to run along against the bunk but have the head rail post concealed inside that line of travel. The feed bunk post is attached via a series of 4 hot dipped galvanised ferrules that are cast in a cage into the cattle side of the bunk. The post is bolted via 4x M16 bolts. The advantage of this process is that the post is neither inside or outside of the bunk, but unlike slip formed bunk, the post is not in a position where water can “pond” and rust the post out. Posts can be supplied or a client can manufacture their own
